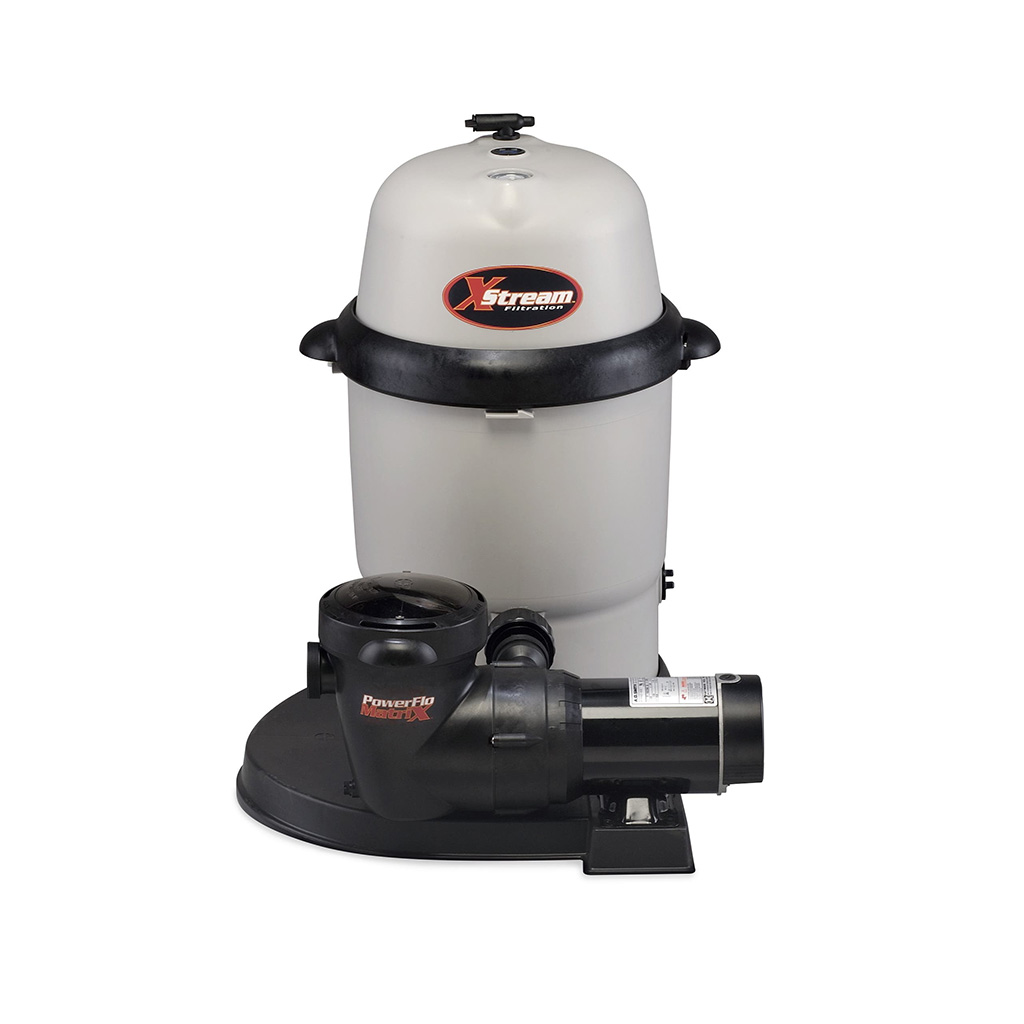

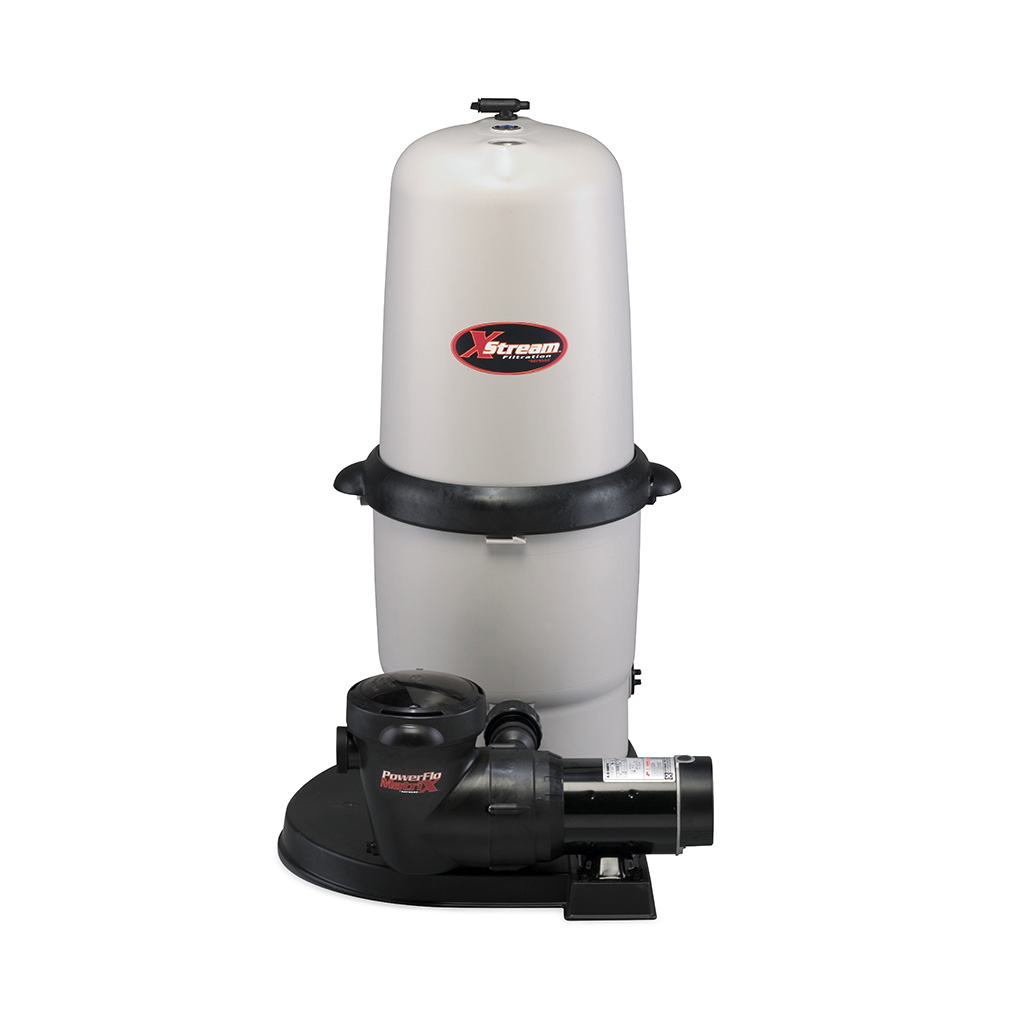

Hayward XStream Filter System
XStream size for an XStream clean. Once you see the XStream filtration from Hayward, you’ll be hooked. Its massive size and incredible performance mean years of trouble-free filtration. It has an extra large capacity for dirt and debris and a quick-release, high-capacity air relief valve.
- Available in CC1000 and CC1500 Series
- Designed specifically for the rigors of above-ground filtration
- Longer, more efficient filtering life
- Larger filter body ensures an equal distribution of dirt and debris throughout the filtering element
- Engineered for easy use with flexible or rigid plumbing
- Quick release, high capacity air relief valve
- Durable filter tank will provide years of trouble-free operation
- Easy-Lok™ ring design allows quick access to all internal components in a single turn
- Unique safety catch prevents over-tightening of the lid and efficiently secures the filter for high performance operation

Similar Supplies
Product Details
XStream size for an XStream clean. Once you see the XStream filtration from Hayward, you’ll be hooked. Its massive size and incredible performance mean years of trouble-free filtration. It has an extra large capacity for dirt and debris and a quick-release, high-capacity air relief valve.
- Available in CC1000 and CC1500 Series
- Designed specifically for the rigors of above-ground filtration
- Longer, more efficient filtering life
- Larger filter body ensures an equal distribution of dirt and debris throughout the filtering element
- Engineered for easy use with flexible or rigid plumbing
- Quick release, high capacity air relief valve
- Durable filter tank will provide years of trouble-free operation
- Easy-Lok™ ring design allows quick access to all internal components in a single turn
- Unique safety catch prevents over-tightening of the lid and efficiently secures the filter for high performance operation
Model Number | Effective Filtration Area | Design Flow Rate | Pressure Loss at Design Flow Rate | Maximum Working Pressure | Required Clearance | 8 Hour Turnover | 10 Hour Turnover |
---|---|---|---|---|---|---|---|
CC1000 | 100 sq ft | 80 GPM | 1 PSI | 35 PSI | Side: 18" Above: 24" | 38,400 gal | 57,600 gal |
CC1500 | 150 sq ft | 120 GPM | 1PSI | 35 PSI | Side: 18" Above: 30" | 57,600 gal | 86,400 gal |
